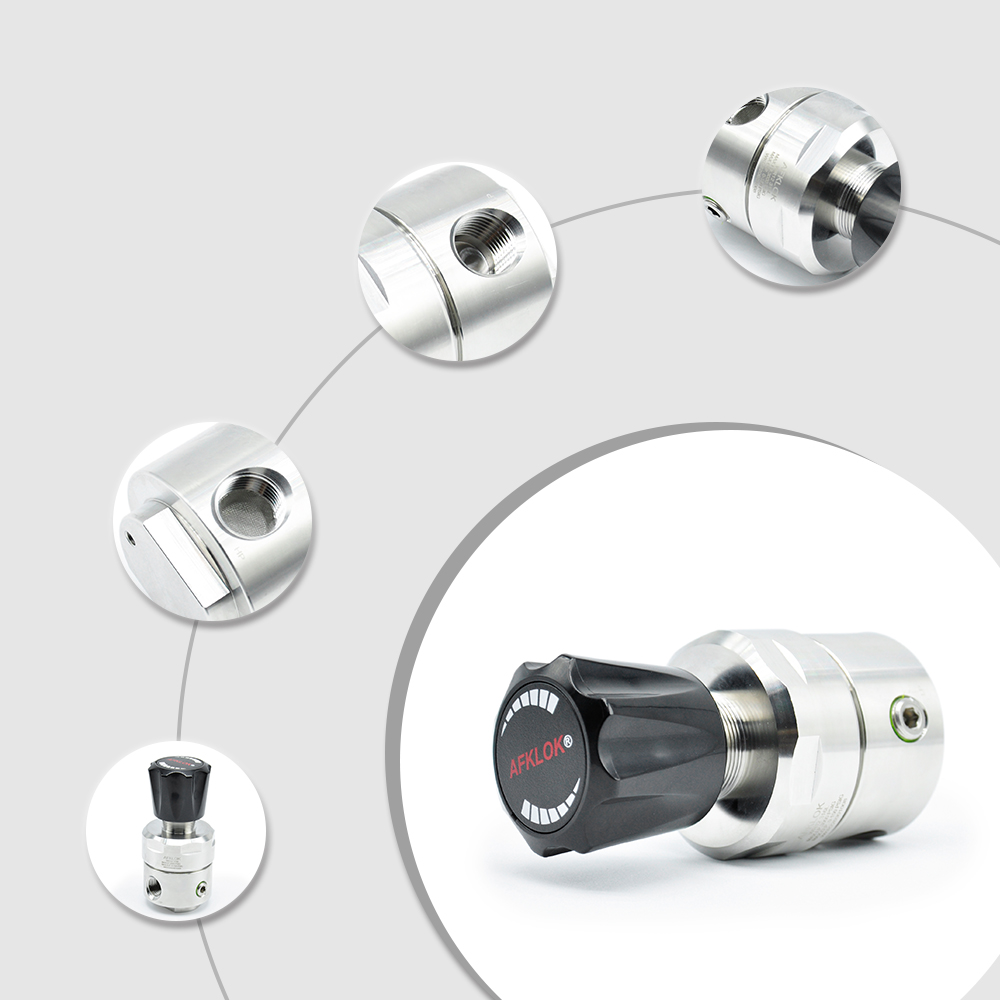

1/2inch Adjustable Helium Single Stage High Pressure Gas Regulator

Short Description:

R12 Serie stainless steel pressure reducers, single-stage diaphragms pressure reducing construction, stainless steel diaphragms pressure transmission, stable output pressure, applied in mass flow gas system


Product Detail

Video

Product Parameters

Ordering Information

Application

Product Tags

industrial co2 regulator

  • Previous:
  • Next:

  • Application

    Laboratory,Gas purge system,Corroslve gas,special gas,Gas bus-bar,Testing equipment,Chemistry industry

    Features of R12 High Pressure Regulator

    1 Single -stage pressure-reducing Structure
    2 Metal-to-metal diaphragm seal.
    3 Body Thread : input & output connection 3/4″ NPT ( F )
    4 Gauge and safety valve connection: 1/4″ NPT ( F )
    5 Filter element installed internally
    6 Panel mountable or wall mounting available
    7 Easy to clean internal structure

    Specification

    1 Max. Inlet Pressure 500, 3000 psi
    2 Outlet Pressure 0~25, 0~50, 0~125 Psi
    3 Proof Pressure 1.5 times of maximum rated pressure
    4 Working Temperature -40°F-+165°F(-40°C-+74°C)
    5 Leakage Rate 2*10-8 atm cc/sec He
    6 CV  1.1
    7 Body Thread  1/4″ NPT ( F )

    R12 flow data

    Ordering Information

    R12

    L

    B

    B

    D

    G

    00

    02

    P

    Item

    Body Material

    Body Hole

    Inlet Pressure

    Outlet

    Pressure

    Pressure  Guage

    Inlet

    size

    Outlet

    size

    Mark

    R12

    L:316

    A

    D:3000 psi

    H:0-125psig

    G:Mpa guage

    02:3/8″NPT(F)

    02:3/8″NPT(F)

    P:Panel mounting

      B:Brass

    B

    F:500 psi

    I:0-100psig

    P:Psig/Bar Guage

    03:3/8″NPT(M)

    03:3/8″NPT(M)

    R:With relief valve

        D

    K:0-50pisg

    W:No guage

    04:1/2″NPT(F)

    04:1/2″NPT(F)



        G

    L:0-25psig



    04:1/2″NPT(M)

    04:1/2″NPT(M)


        J

    12:3/8″ OD

    12:3/8″ OD
        M

    13:1/2″ OD

    13:1/2″ OD
                Other type is available Other type is available

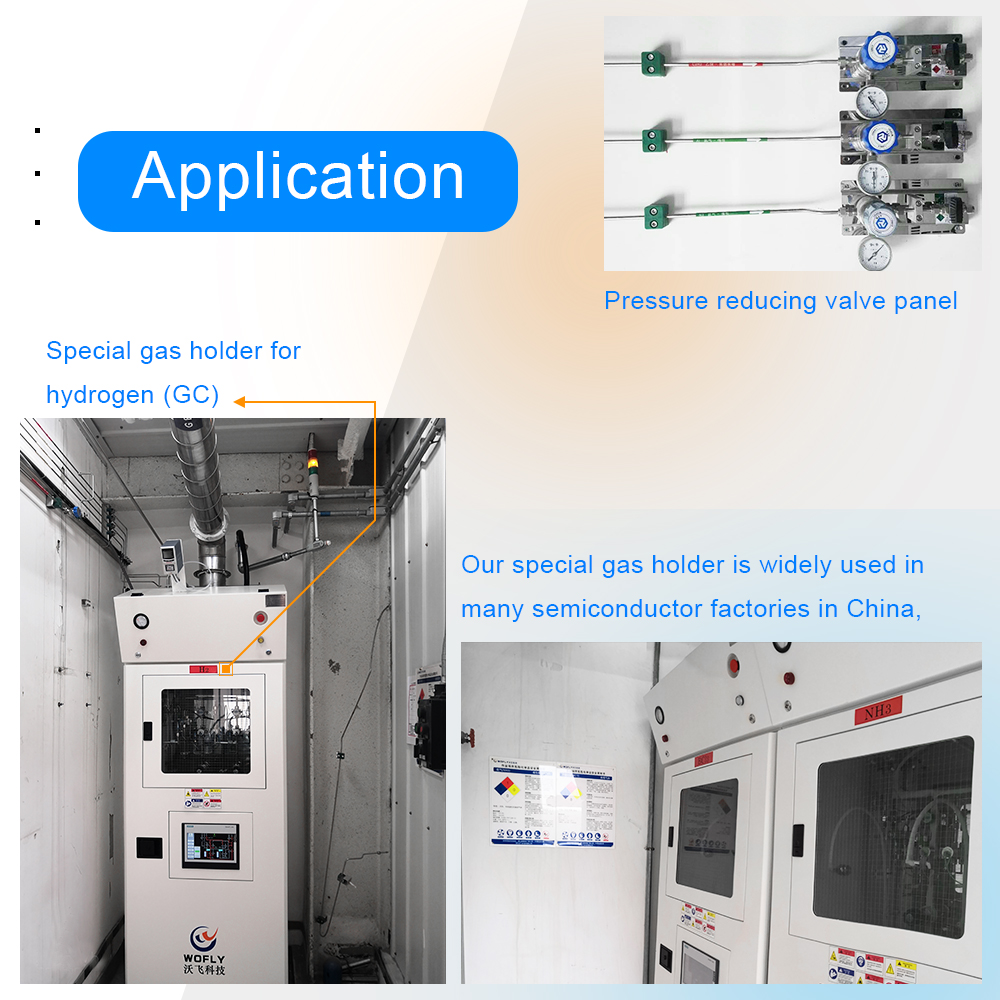

    Special gas conveying cabinet is a supply system designed for supplying flammable and explosive, corrosive, toxic and other dangerous gases, which can be divided into: fully automatic, semi-automatic and manual operation according to categories. The basic functions include automatic purging, automatic switching and automatic safety cut-off in case of emergency (when the set alarm signal is triggered) The fully automatic gas cabinet achieves safe and effective operation of the equipment through the use of PLC control, touch screen as human-machine interface and through the equipment installed with pressure sensors, pneumatic valves, over flow meters and other devices. The safety interlock function of its internal PLC program design and the reasonable selection and layout of high-purity valve parts not only meet the requirements of continuous supply and high purity of special gases in the production process of semiconductor process, but also ensure the normal production of the plant and personal safety of employeesSemi automatic switching
