100℃ 120℃ 150℃ 500℃ Axial Industrial bimetal Back thermometer

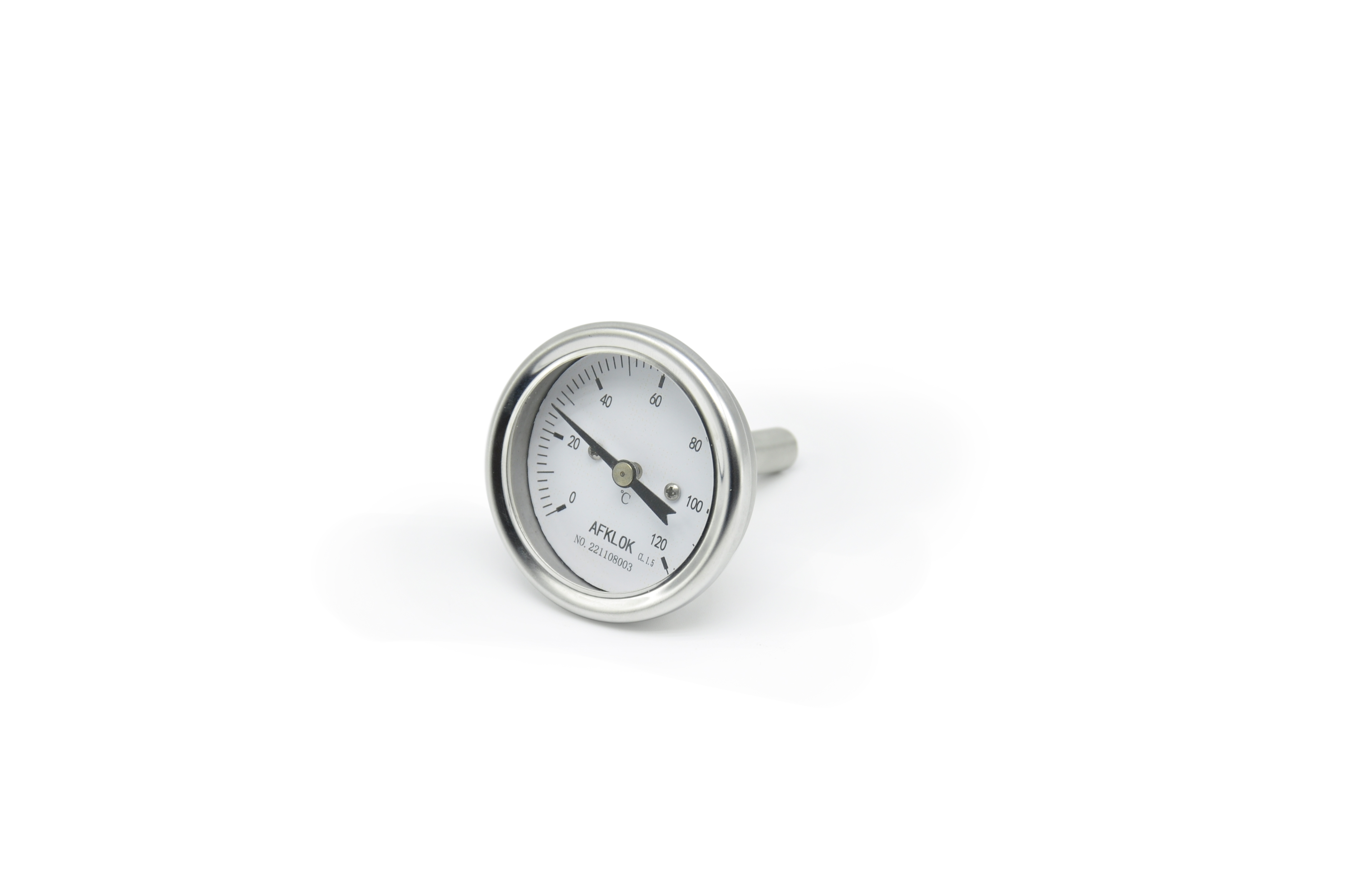

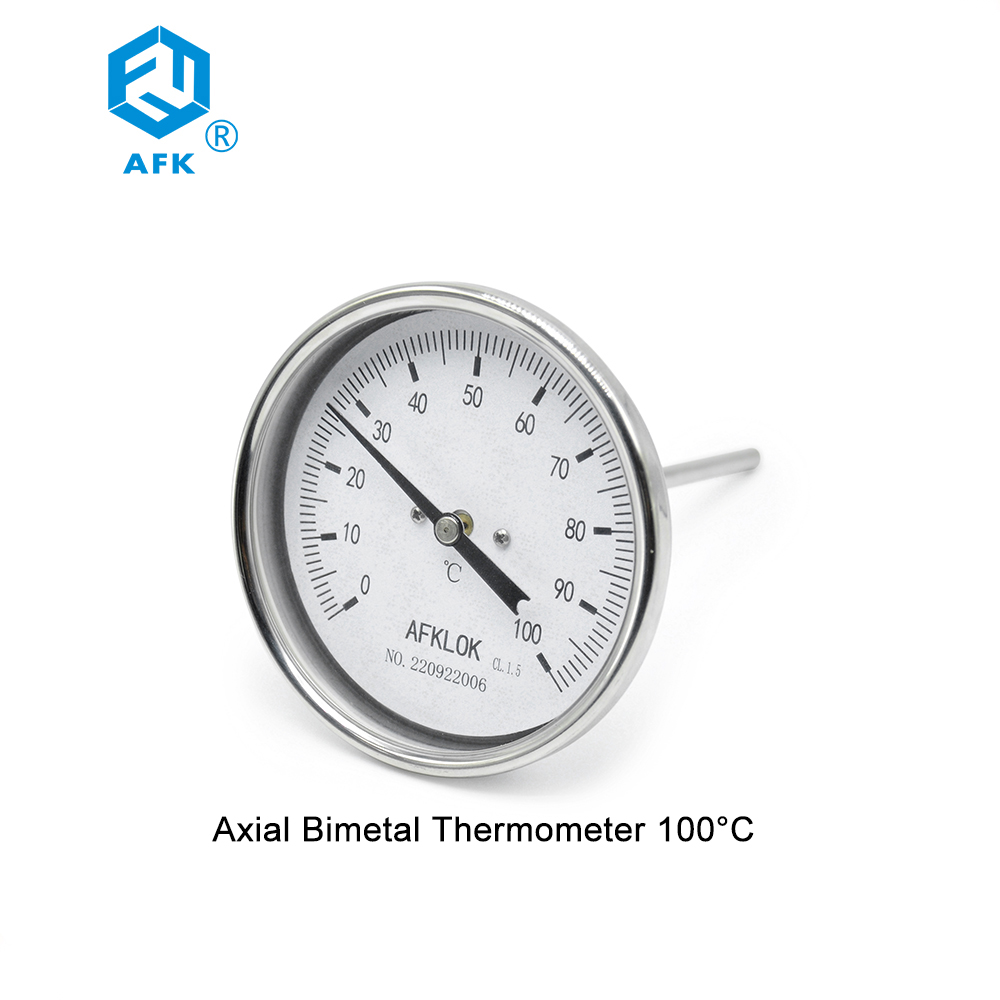

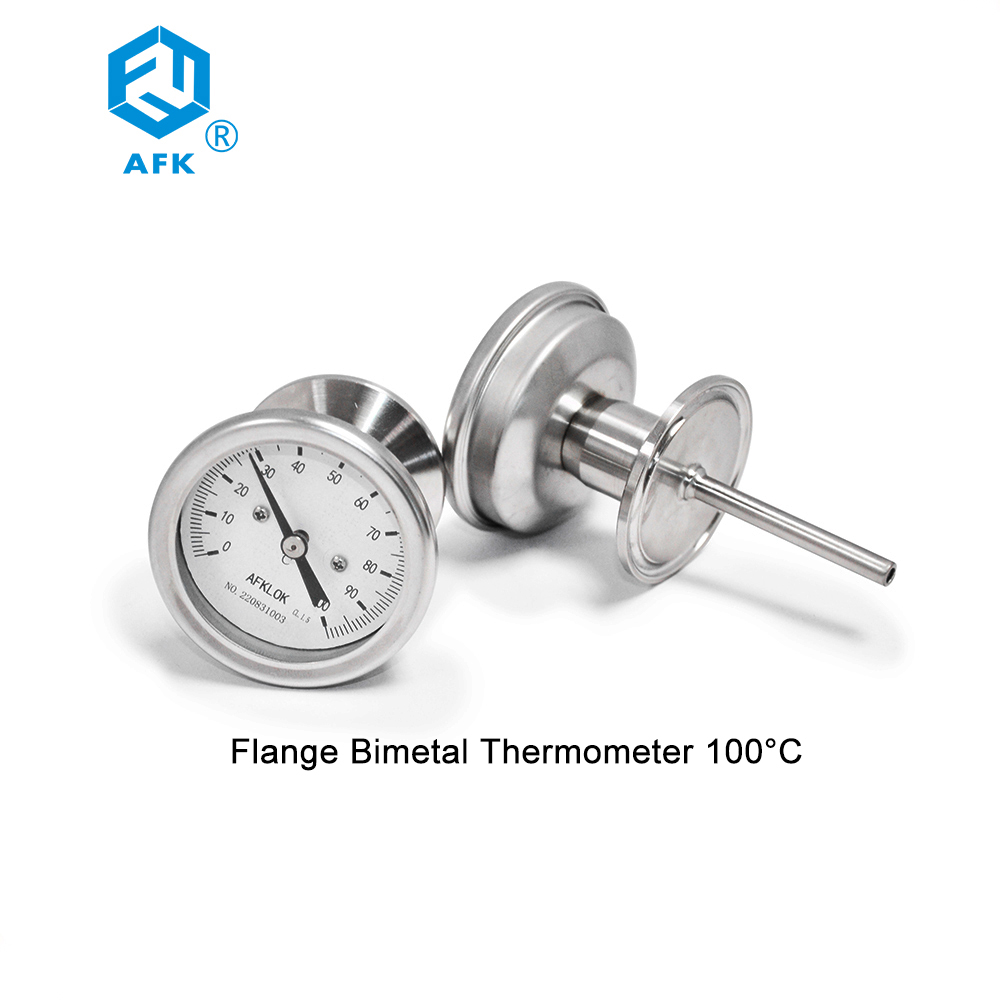

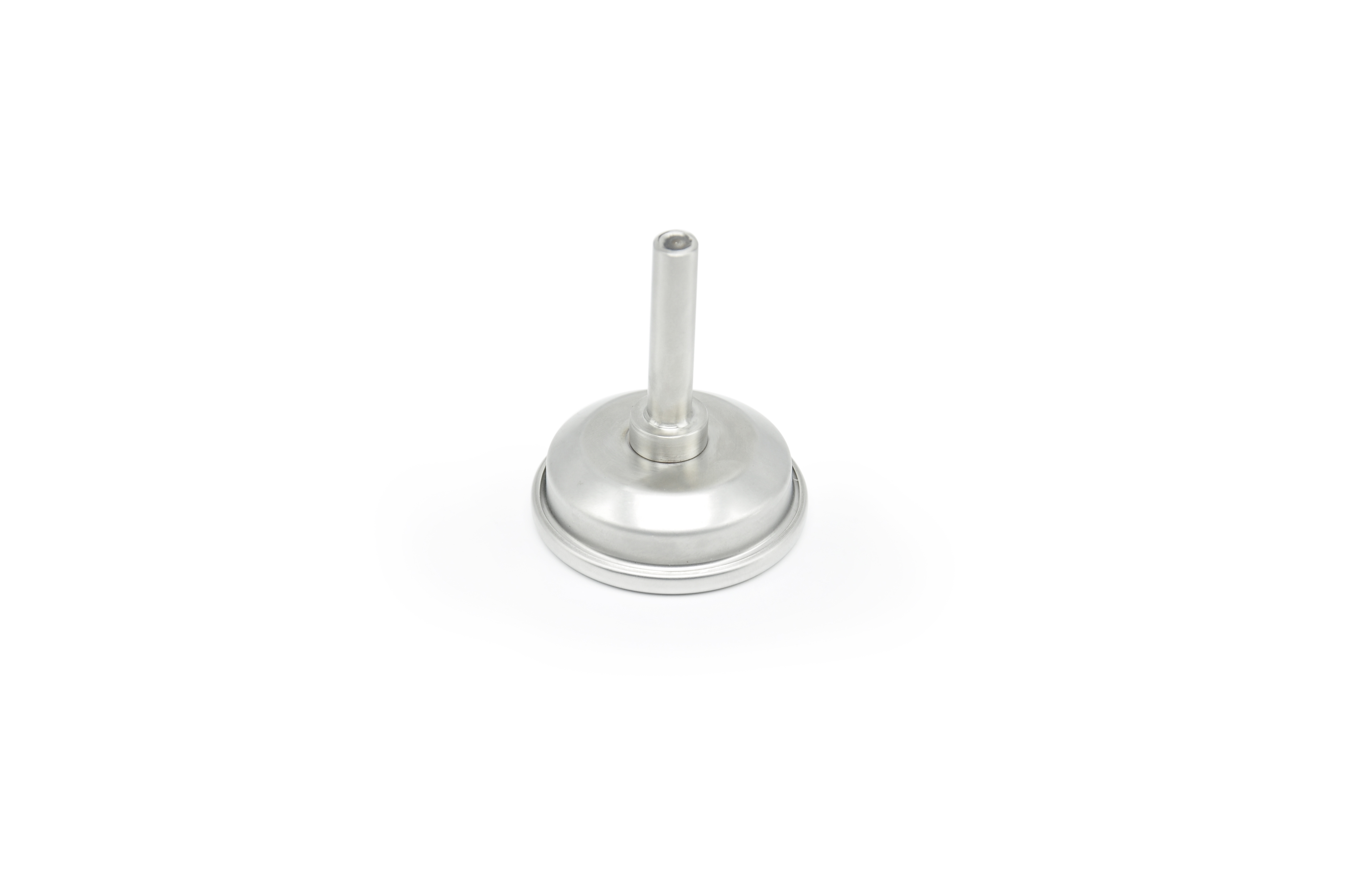

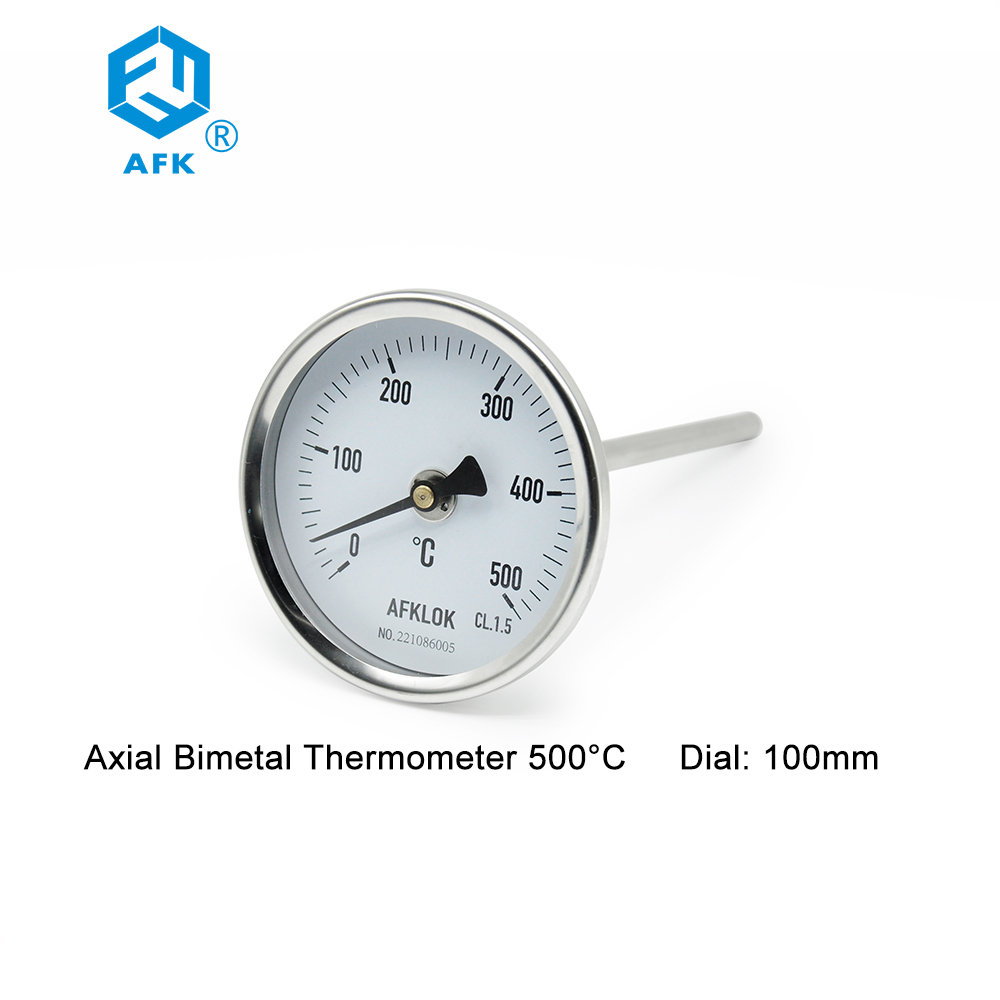

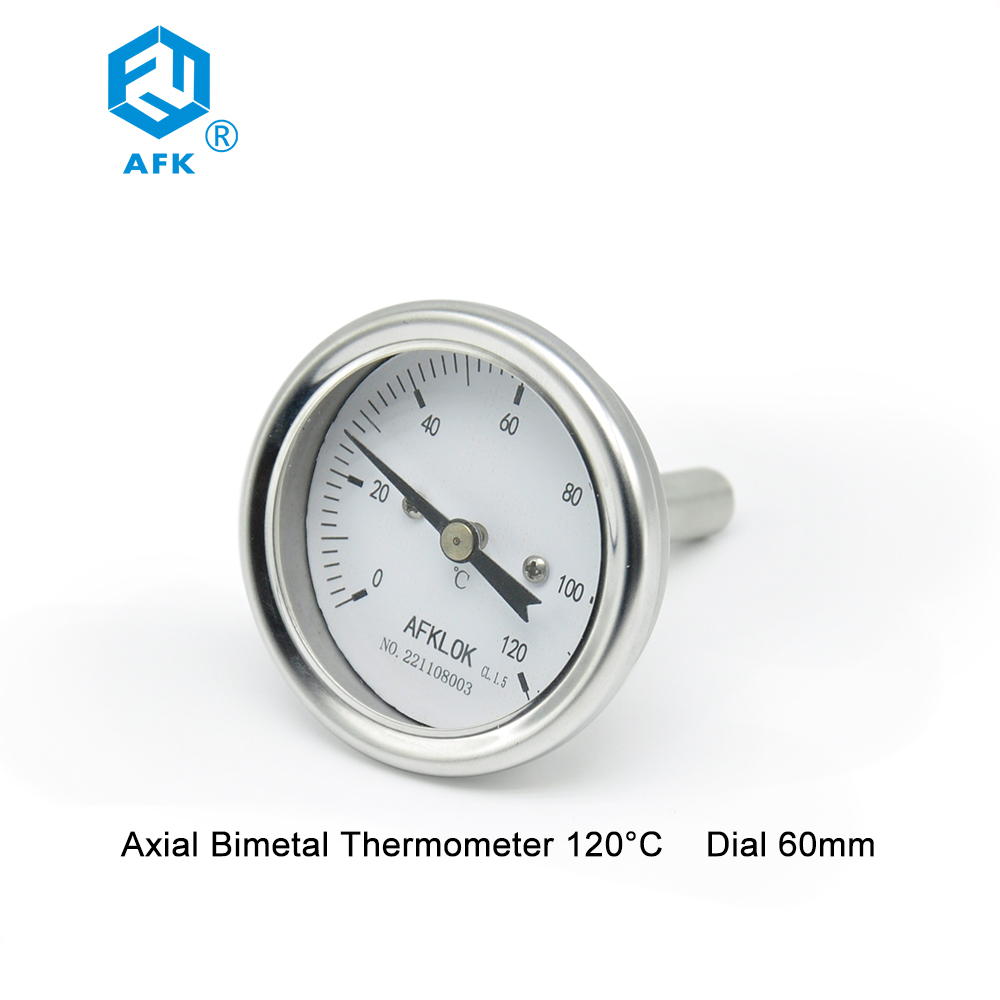

Product Description of 100℃ 120℃ 150℃ 500℃ Axial Industrial bimetal Dial Type thermometer
WSS series bimetallic thermometers are designed to directly measure low and medium temperature of fluid Steam. The sensing element"Bimetallic Coil"is composed of 2 indivisibe metal sheets.Since the 2 metal have different rates of thermal expansion,the bimetal deforms varying with temperature.This expansion is almost in proportion to temperature.The one end of bimetal is fixed,the other end is connected to mechanism to drive point.
Specification of 100℃ 120℃ 150℃ 500℃ Axial Industrial bimetal Dial Type thermometer
| Brand Name | AFK |
| Model Number | WSSF403 |
| Product Name | Axial Industrial bimetal Dial Type thermometer 120 Degree |
| Material | SS304 |
| Measurement Range | -50℃~0~600℃ |
| Probe Length | 45mm |
| Gauge Range | 0-120℃ |
| Probe Size | 9mm |
| Dial | 60mm |
| Temperature Sensing Rod Diameter | 6.35mm,8mm,10mm |
| Type | Corrosion-Poof |
 |
 |
 |
 |
Q1: what kinds of stainless steel are most commonly used?
A1.201 stainless steel is suitable for use in dry explosion environment. It is easy to rust in water
A2.304 stainless steel, outdoor or humid environment, strong corrosion resistance and acid resistance.
A3.316 stainless steel, molybdenum added, more corrosion resistance and pitting corrosion resistance, especially suitable for seawater and chemical media.
Q2. how can we guarantee quality?
A1: Strictly in accordance with the ISO9001 standard, the products have passed the A2.CE/ROHS/EN certification
Always a pre-production sample before mass production;Always final Inspection before shipment;
Q3.what can you buy from us?
A.pressure regulator,pressure gauges, Tube fittings,solenoid valve,Needle valve,check valve ect.
Q4.What’s the MOQ?
A: , All products are in stock, MOQ is 1 pcs, Generally according to the requirements of customers, no matter.
Q5. what services can we provide?
A1.Accepted Delivery Terms: FOB,CIF,EXW；
A2.Accepted Payment Currency:USD,CNY;
A3.Accepted Payment Type: T/T,L/C,Western Union;
A4.Language Spoken:English,Chinese
Q6. How long will the shipment take?
A: If it’s express, it will take 3~7days.If it by sea,it will take about 20~30days.
Q7. If any question when I got the product,how to solve it?
A: The product have warranty and we will offer you the online or video technical support.
